Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Long & Short Action Remington 700 pattern Rifles. Compatible with most clones, if it is a pure R700 clone, it should fit, similar to R700 clones may require checking the compatability chart.
4140 Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Properly supports the action to avoid exterior finish damage
Please Note: This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.

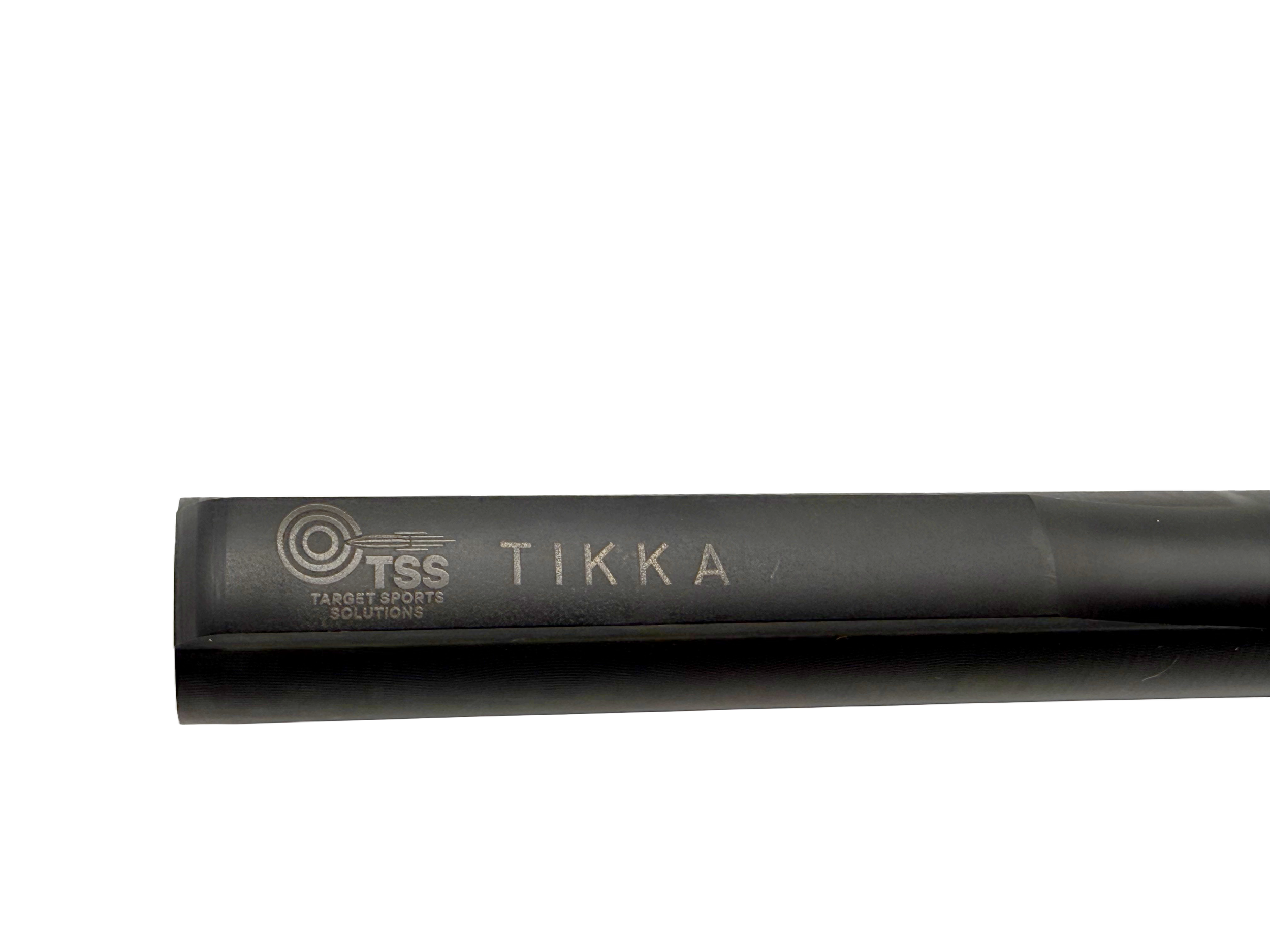

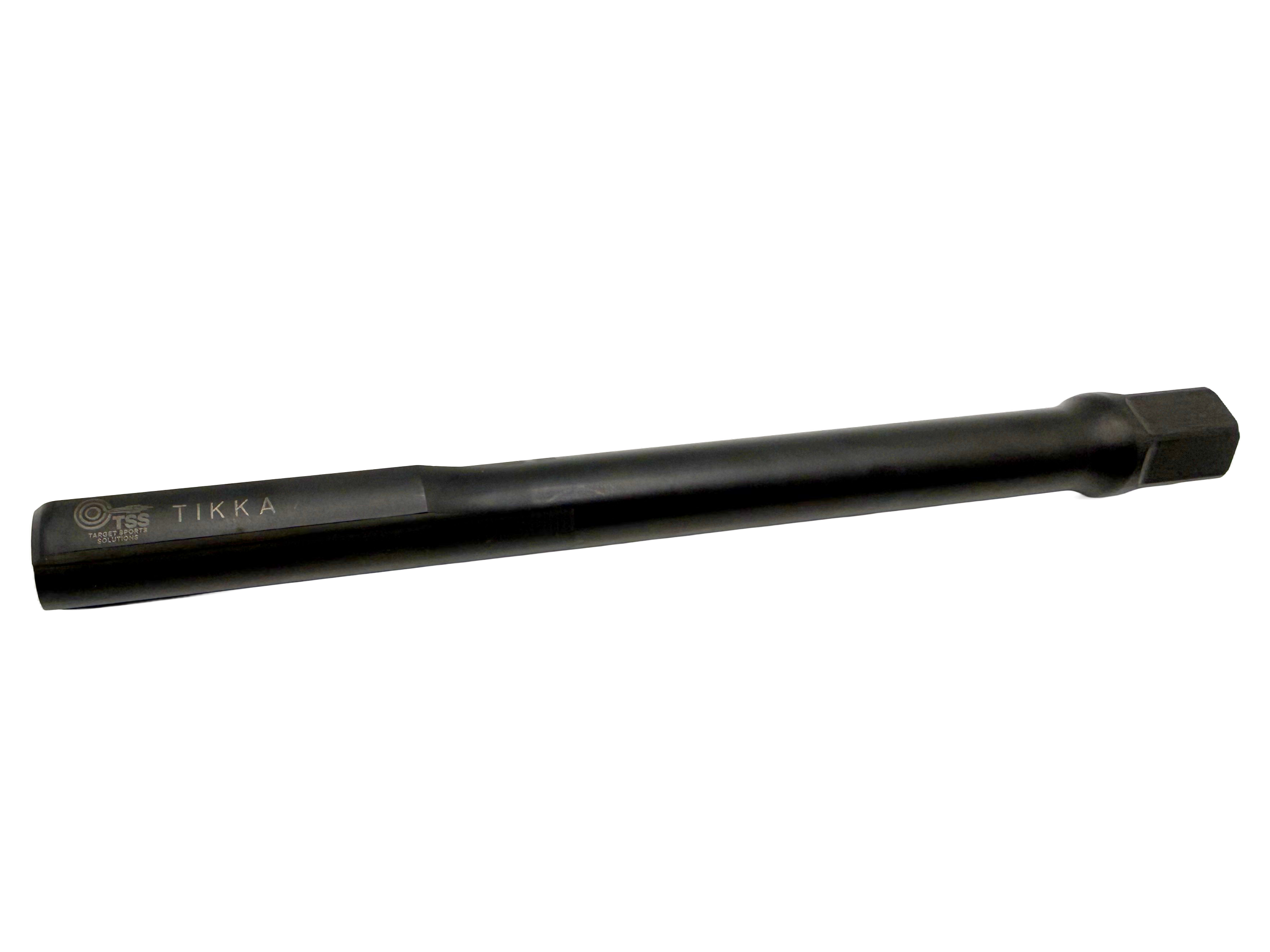

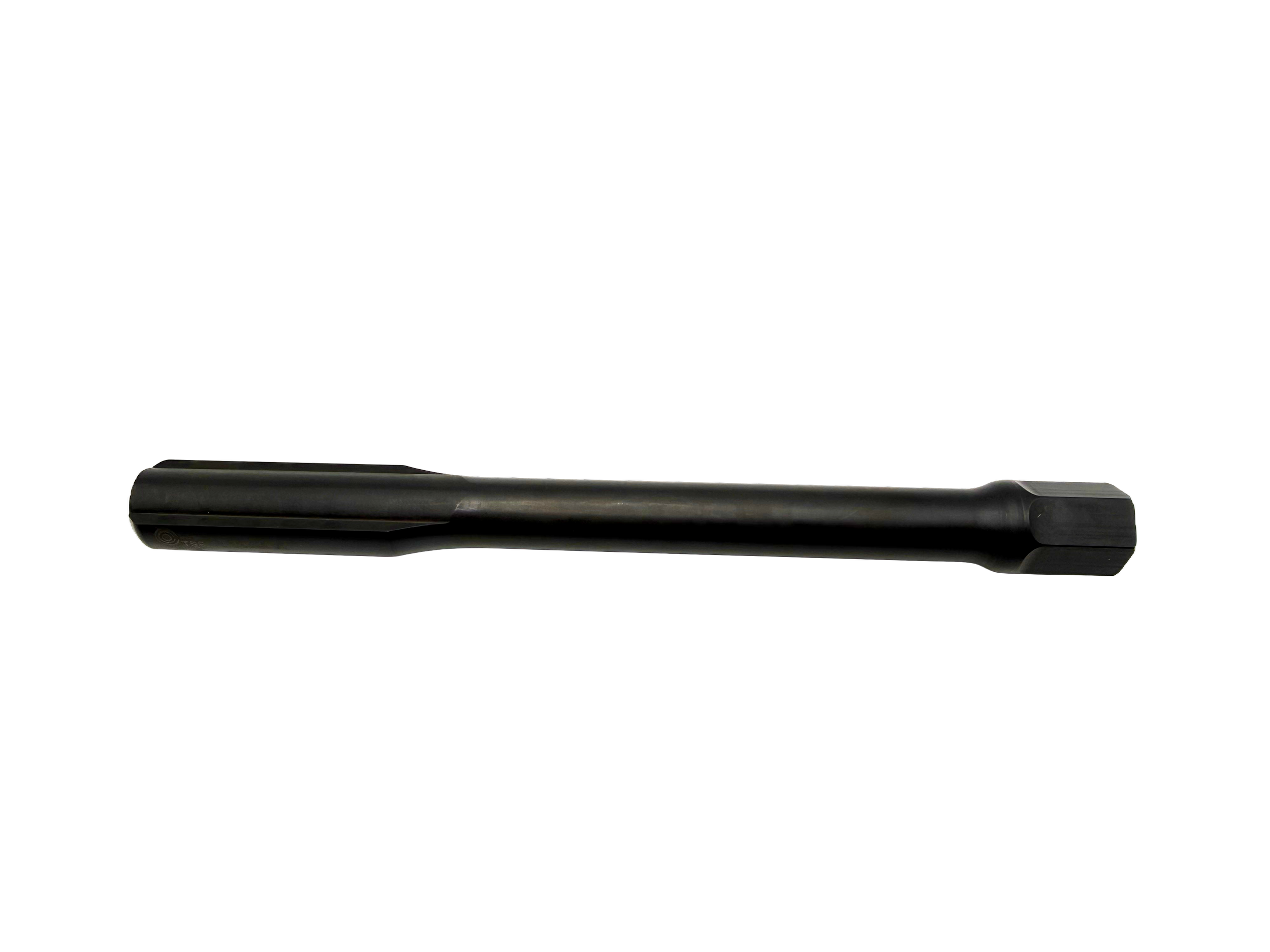

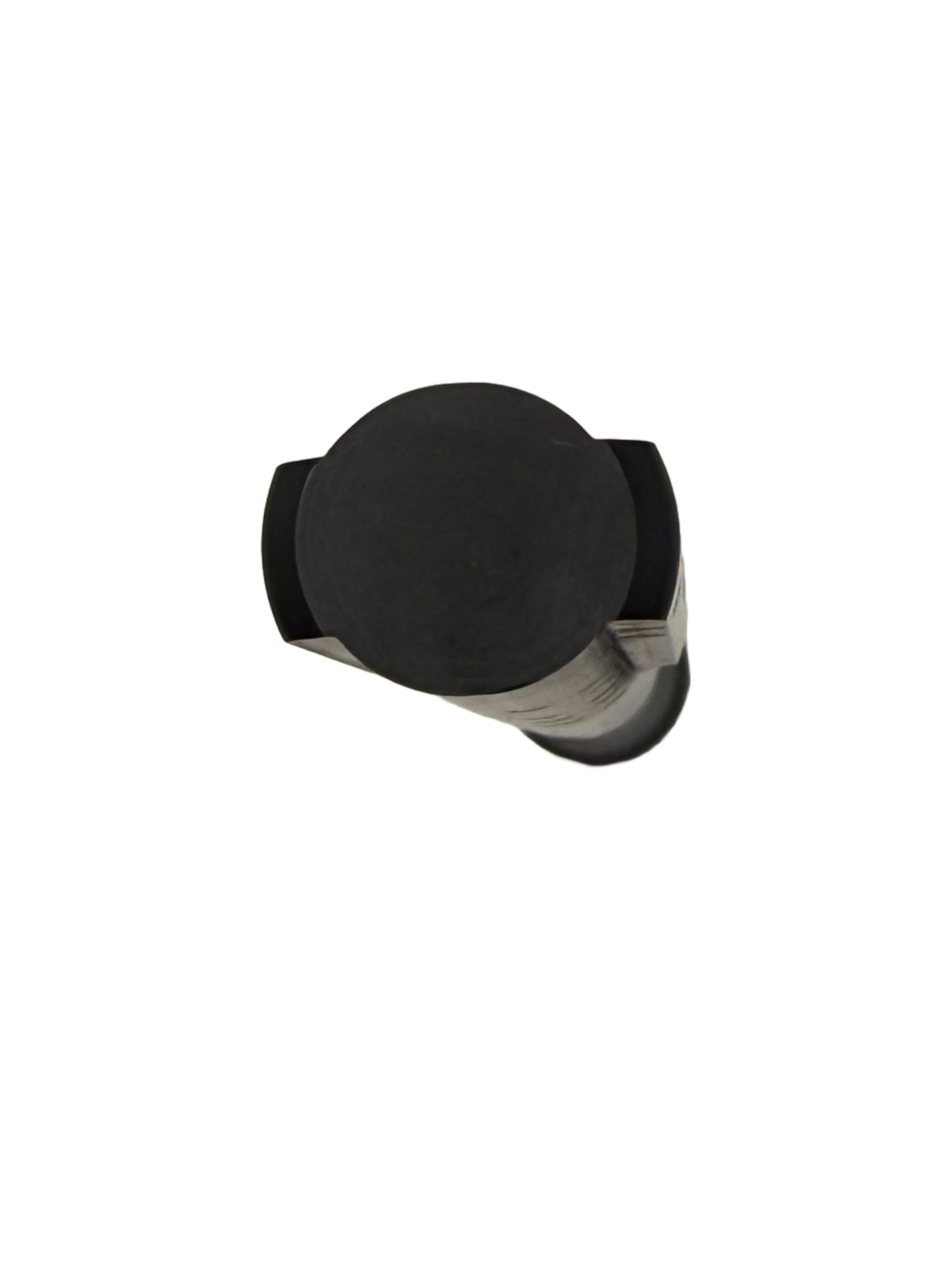

Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Tikka T3 & T3x Rifles
4140 Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Please Note: Tikka actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.
Target Sports Solutions is proud to finally bring our Remington 700 pattern bolt disassembly tool to the market.
This Tool helps mechanically retract the firing pin to unthread the firing pin and bolt shroud assembly from the back of the bolt for servicing and cleaning. This design safely contains the striker under spring tension for easy removal and reassembly. This will also work on most bolts that are not threaded but have a quick take down design (Push and twist for removal).
SPECIFICATIONS:
Compatibility: Remington 700s Short/Long Actions & Clones (R700, R7, R600, RXP100, Defiance, Stiller, PTG, Kelbly)
Black Delrin Construction - Will not scratch or deform the finish in any way
Free Shipping to the CONUS Lower 48!
New production Winchester 1897/97 takedown and solid frame(non-takedown) or Winchester Model 12*** Mag tube plugs for Trench Gun with heat shield use.
Available in a Black oxide finish. No screws included - Winchester Model 97 Mag Plug screws required, read below.
This will work in the originally designed solid frame models and takedown models because the screw hole is tapped from both sides. Therefore, it will work with the solid frame singular long screw pictured or the takedown two short screw design as pictured. The same goes for Model 12 use. There is no other comparable designed plug on the market that is ready for all applications.
Note, for Trench Gun builds, you truly want to use one of these plugs compared to the standard takedown plug. This plug actually connects the mag tube to the heat shield, through the tip at the end of the plug and a recess in the back of the heat shield. This ensures a rigid alignment and support of the mag tube(results in a slicker action) and gives you the closest look to an authentic Trench Gun.
Expect light fitting of this piece or the mag tube for the screw install. You may need to egg out some of the magazine tube screw holes for perfect assembly. Also, the threads are tapped 8-32 like the standard screws, encase you need to perform thread repair.
***Model 12 Users - Some model 12 plug screws are 6-32 instead of 8-32. You will need to purchase Winchester 97 8-32 plug screws to use this plug. Both thread screw sizes have identical head dimensions and are compatible with the plug and your mag tube. Some model 12 users have also needed to dress the internal body of the plug down to fit in their mag tube.

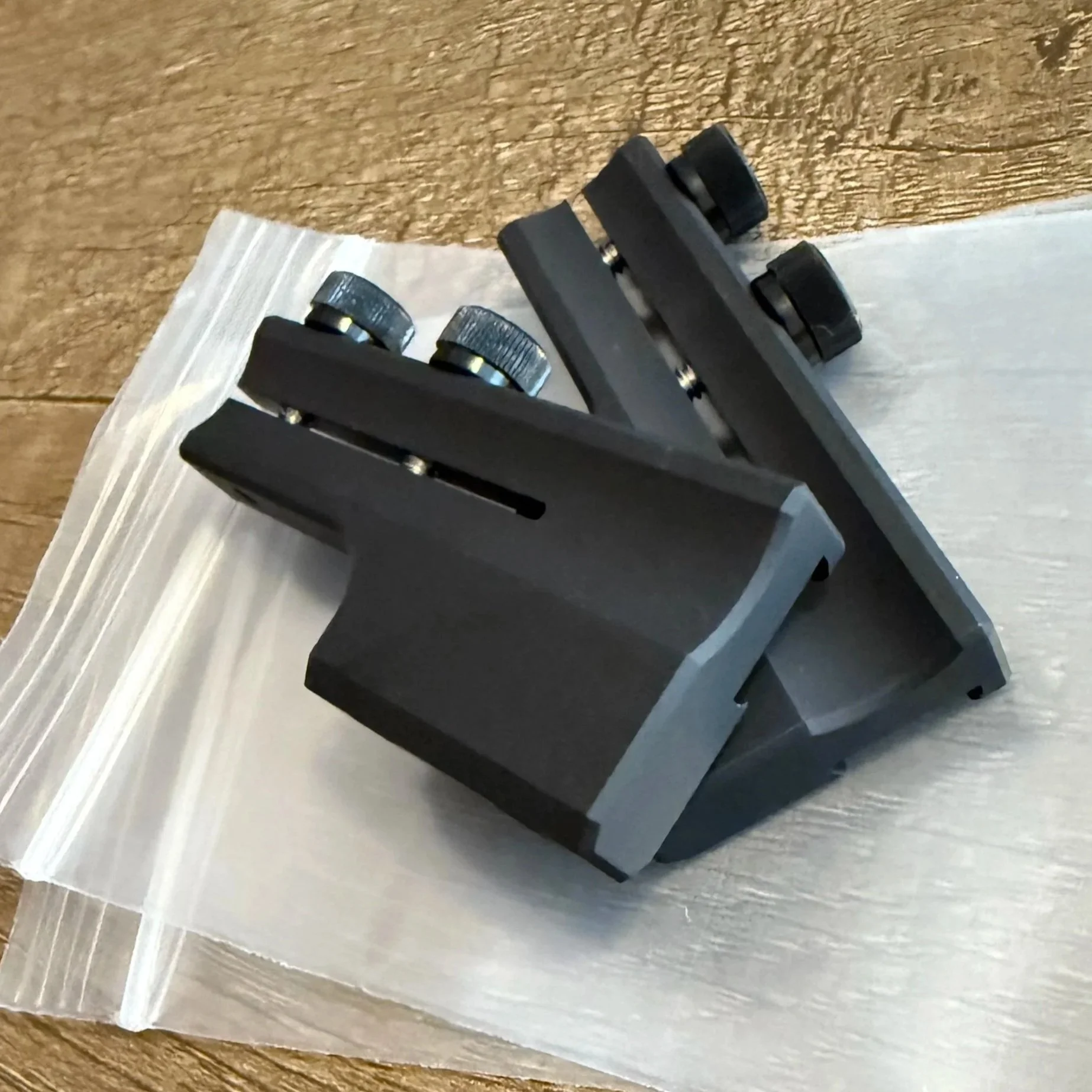

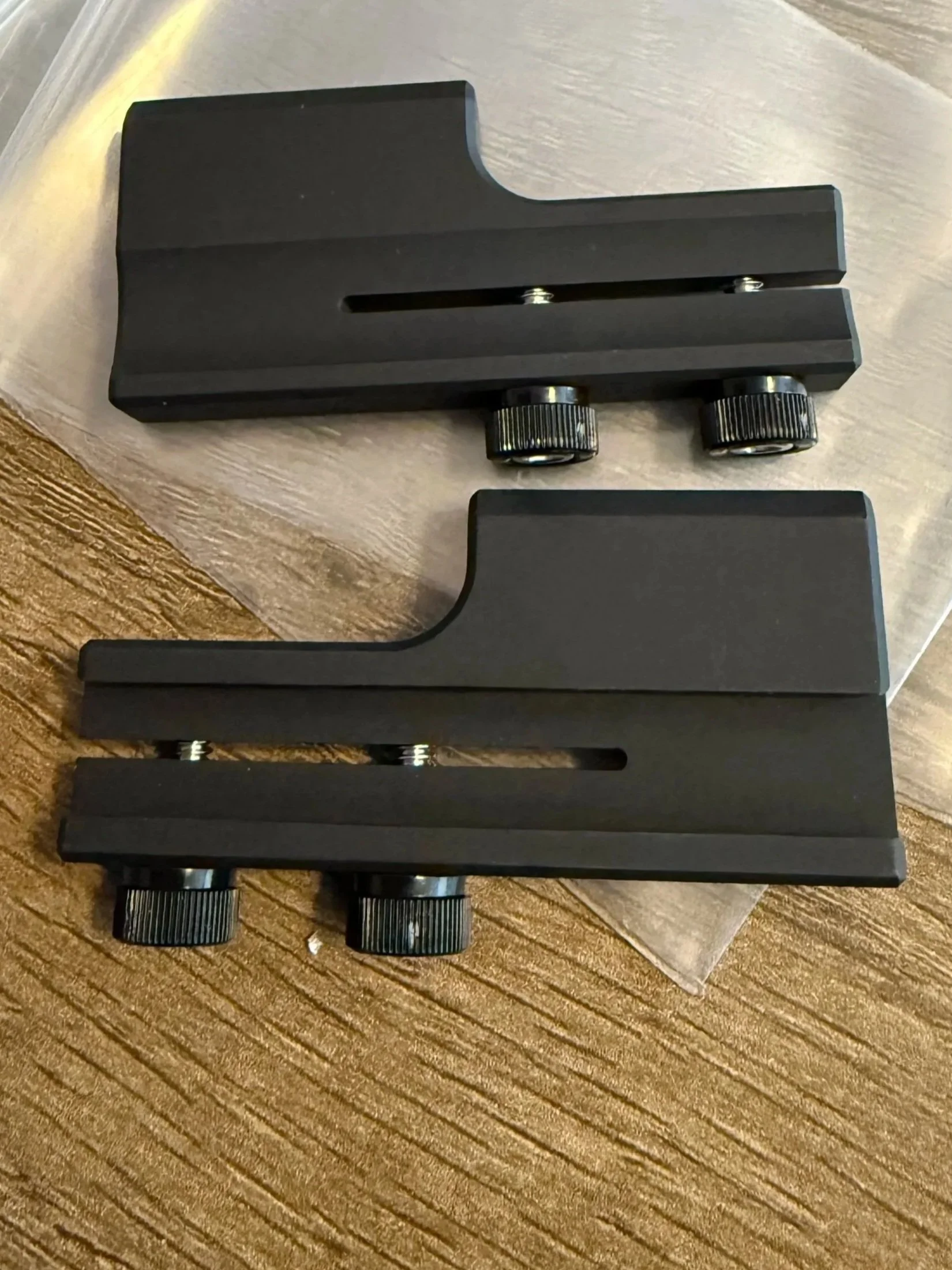

Modern production Anschutz style rear sight base mount for your favorite side mount Rear Sights (Warner, Mudcat, Phoenix, Centra and PNW). This mount is specifically designed to give a true mechanical windage zero using a Warner sight unlike the original Anschutz conversion base that is no longer in production. It also is dimensionally proper for a true v-channel lock using a Warner pattern sight.
Designed for the Anschutz 11mm dovetail, it should accommodate use on Walther and Feinwerkbau dovetail sight rails as well.
Specifications: 11mm Dovetail mounting design - heavily copying the original Anschutz base pattern. 7075-T6 Aluminum construction with Type 3 Hardc oat Anodizing produces a resilient base with a beautiful finish. Thumb knob 6-32 screws with incorporated allen head feature to torque the base down. Note: In many instances it is difficult to manipulate the thumb knob bolt (space constraints).
This is a product improvement from the original, made from higher strength aluminum compared to cast pot metal. Mudcat Precision will sell you 1/8minute elevation and windage plates for Warner sights - for use with 3p small bore.
A Classic reintroduction of the original steel Tubb pattern rear sight base. This sight base is designed to mount Warner, Mudcat, LRA, PNW, Phoenix and Centra Rear sights. These bases will allow for a true mechanical zero of a #2 Pattern Warner sight and most others.
Specifications:
Steel Construction with Black Oxide Finish
Low Profile - Strong and designed with minimal failure points
3X Rear Sight attachment holes
2X 6-32 Clamping Bolts (Torque to 15-18 IN-LBS)
Dimensioned to True Milspec Picatinny rail
Mechanical Zero to centerline of Picatinny rail
***Blem Model: We are passing the savings onto you - the machine shop ran the tap too deep for the 10-32 sight mounting bolt holes. This left thread impressions on the top of the mount that can be considered "unsighly".

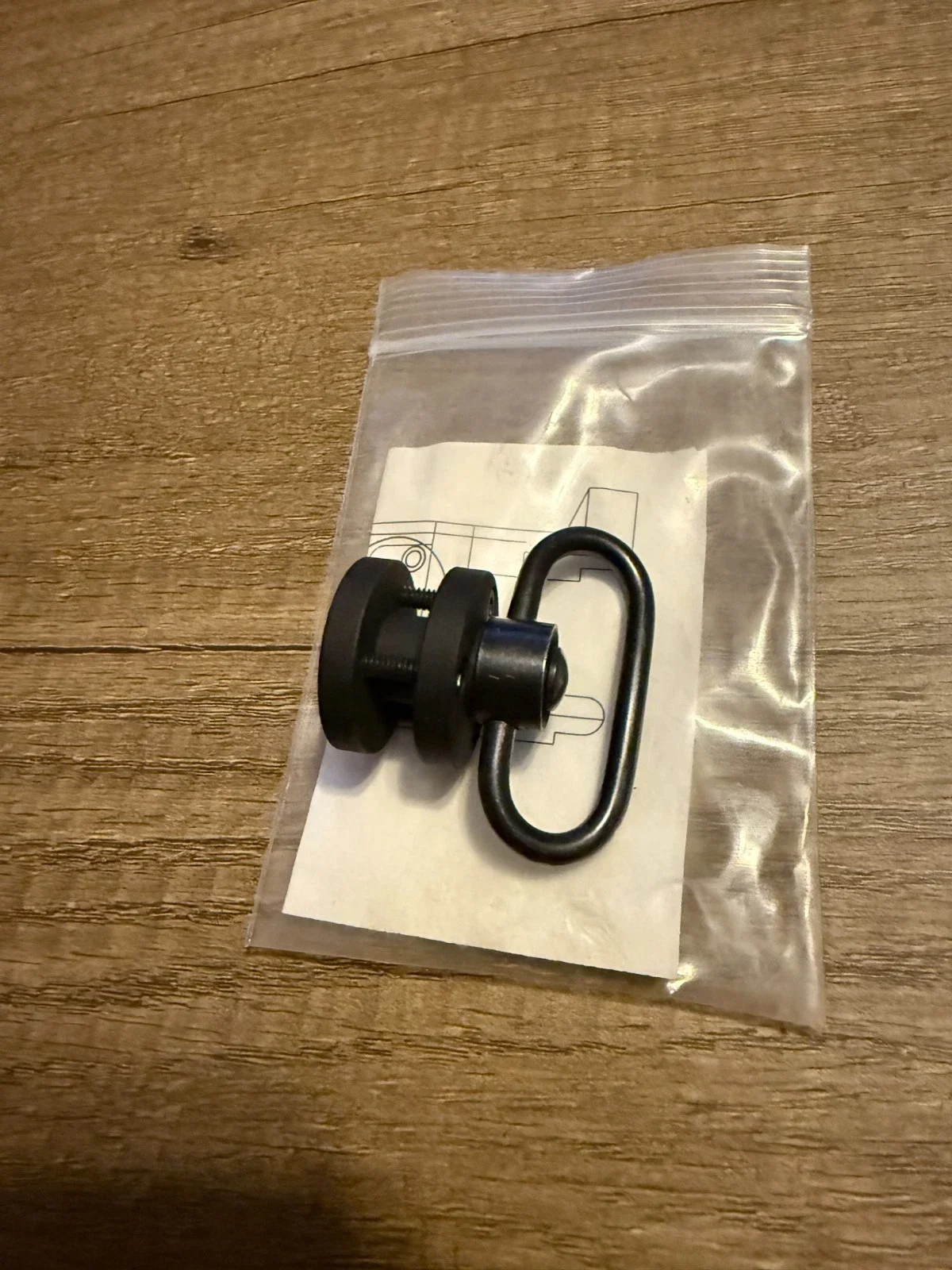

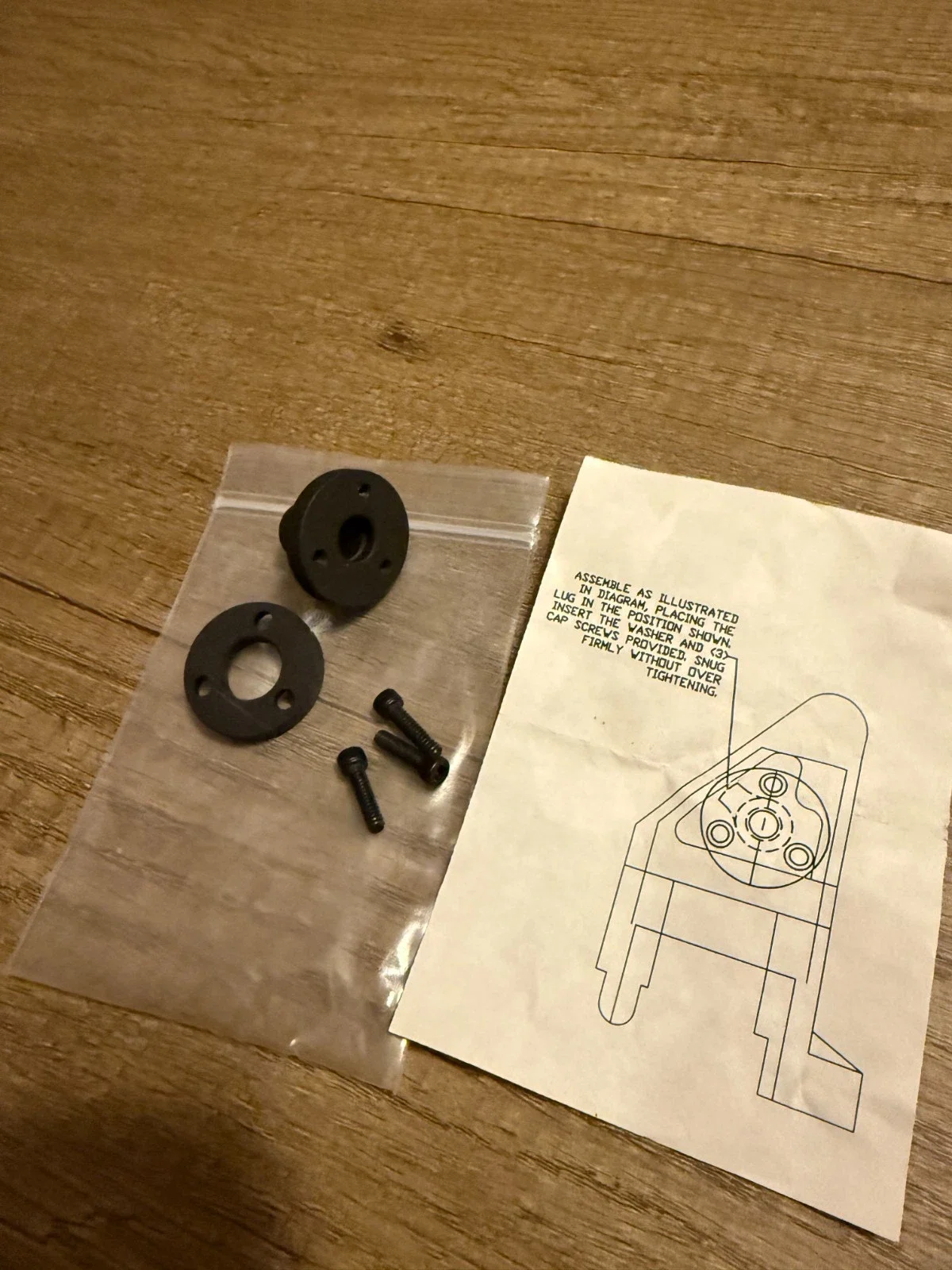

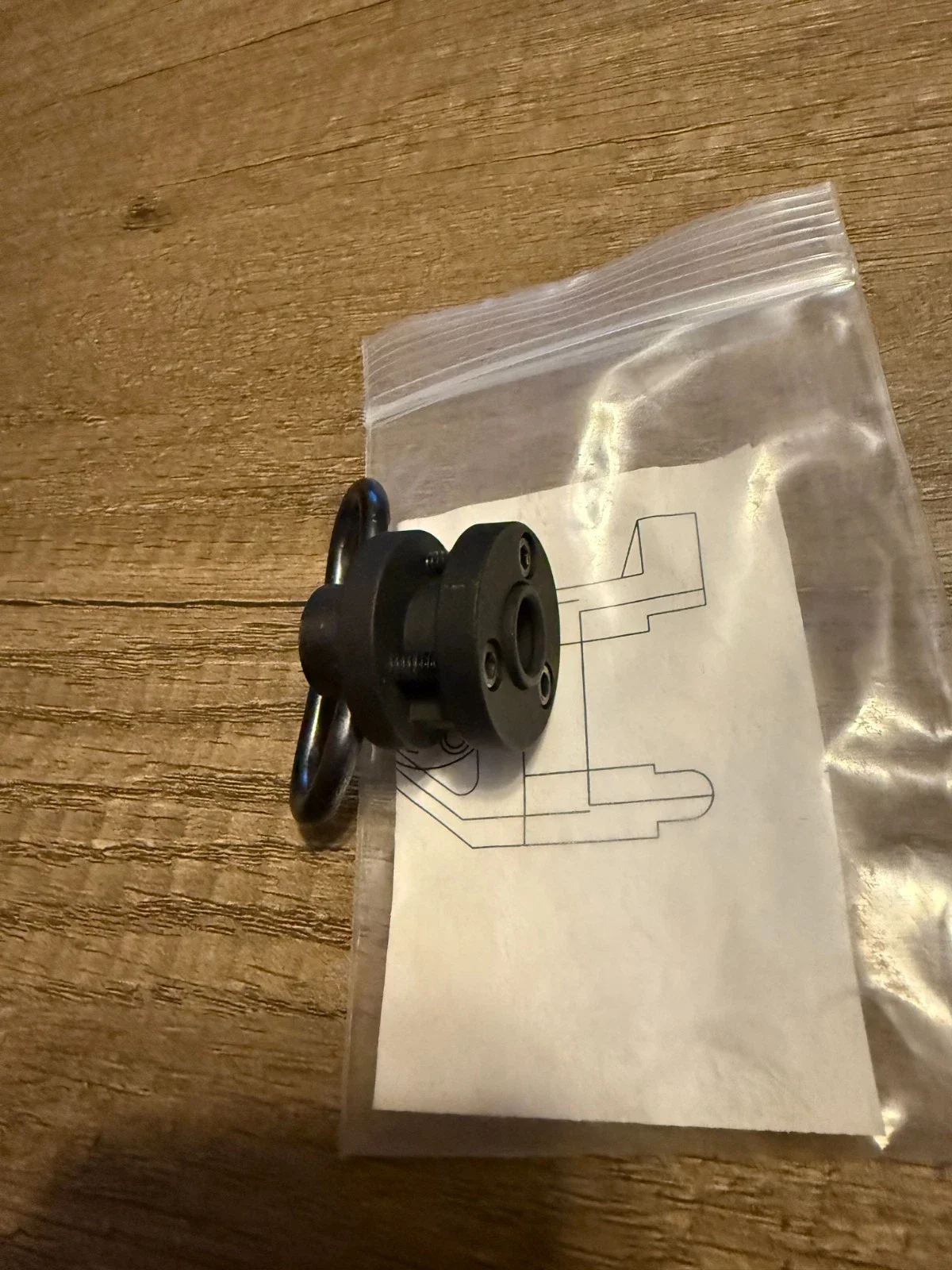

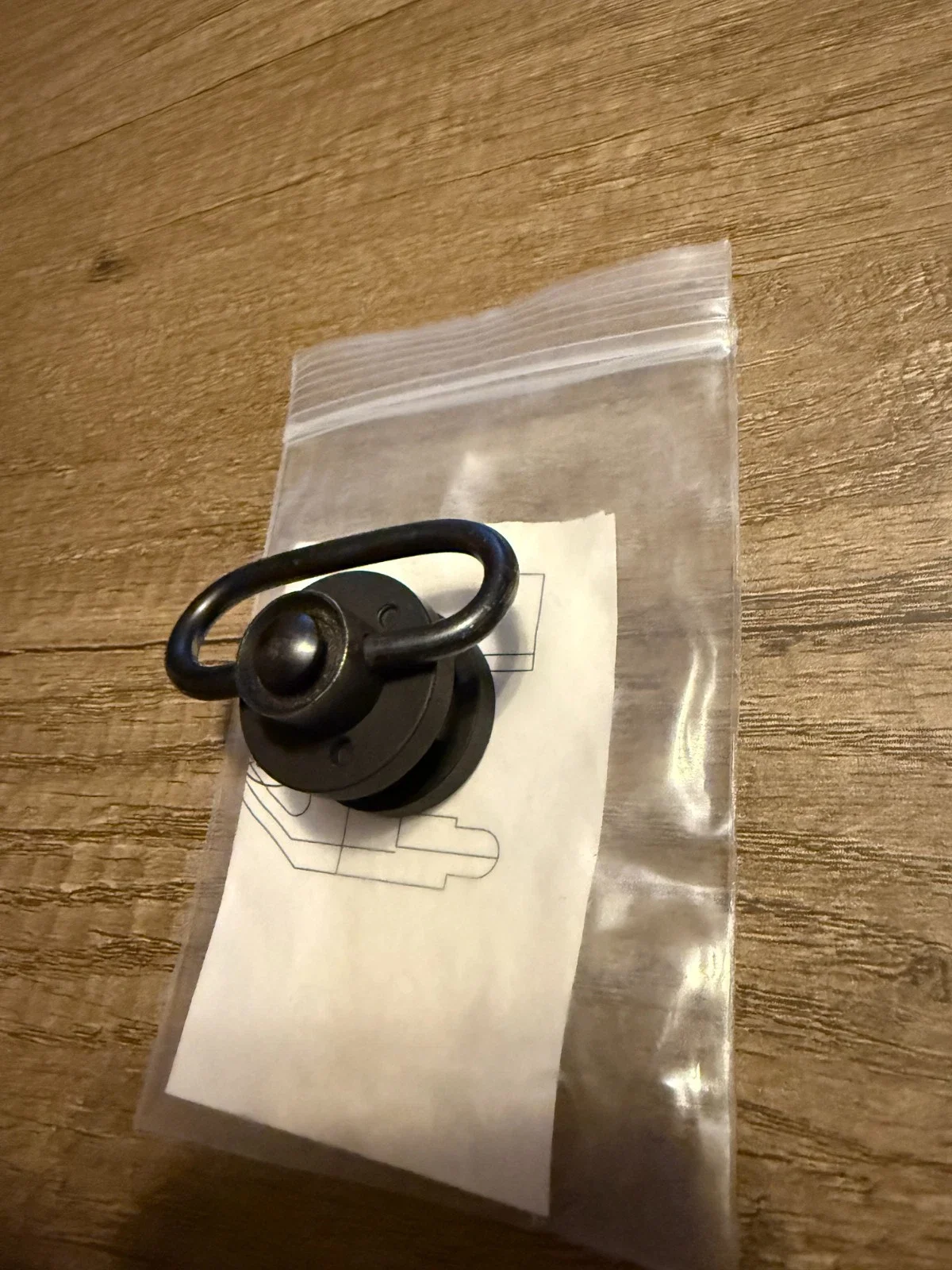

This sling mount can be installed easily in about a minute without special tools or modifications to your firearm. All that is needed is a 7/64 allen wrench. The swivel can be relocated to either side of the firearm for right or left-handed shooters without the removal of the mount. Made from aircraft quality aluminum and hardcoat annodized to mil spec. Swivel stud and mounting screws included. Made in the USA to the YHM Yankee Hill Machine Standard
**No QD Sling Swivel included

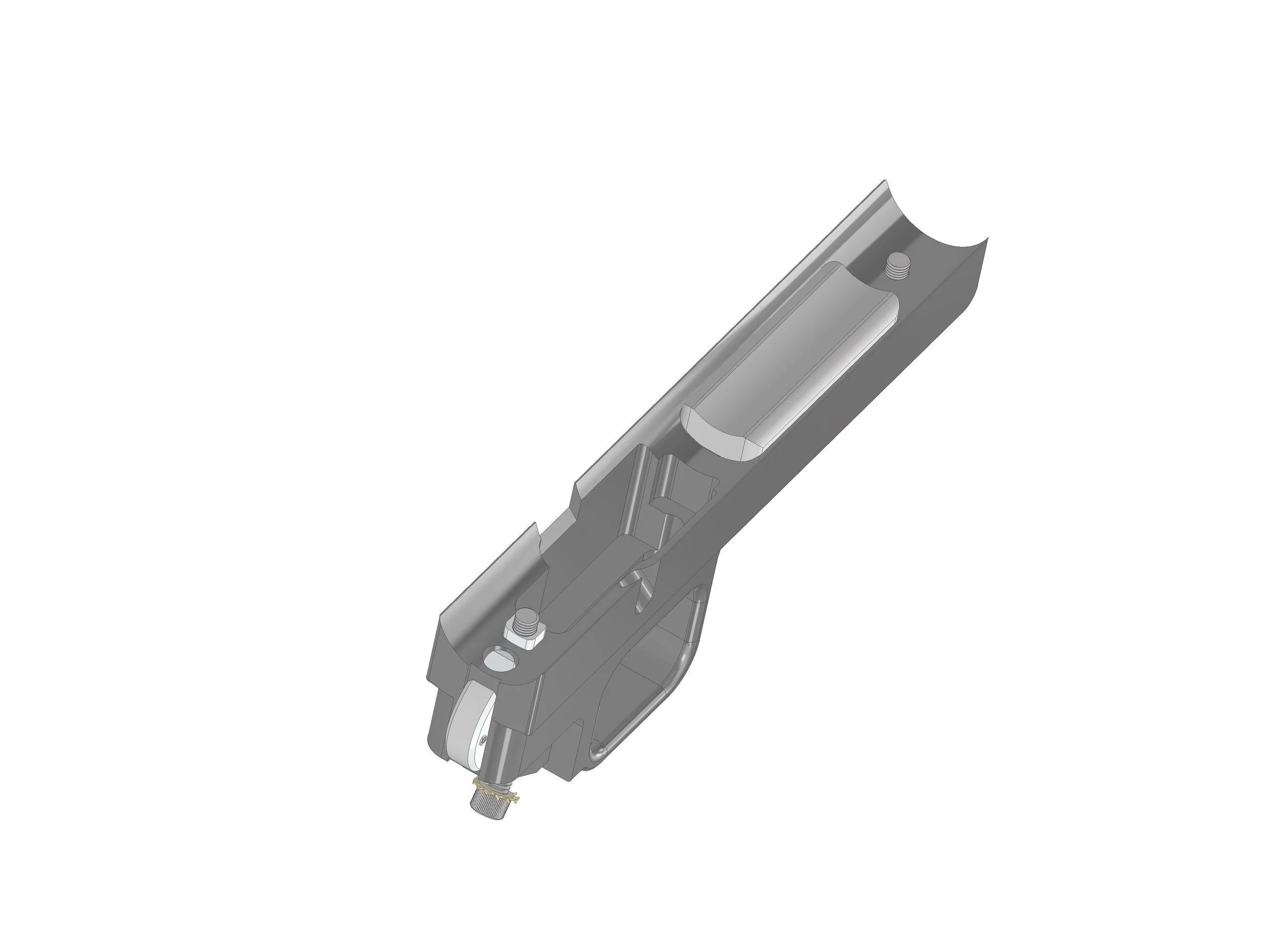

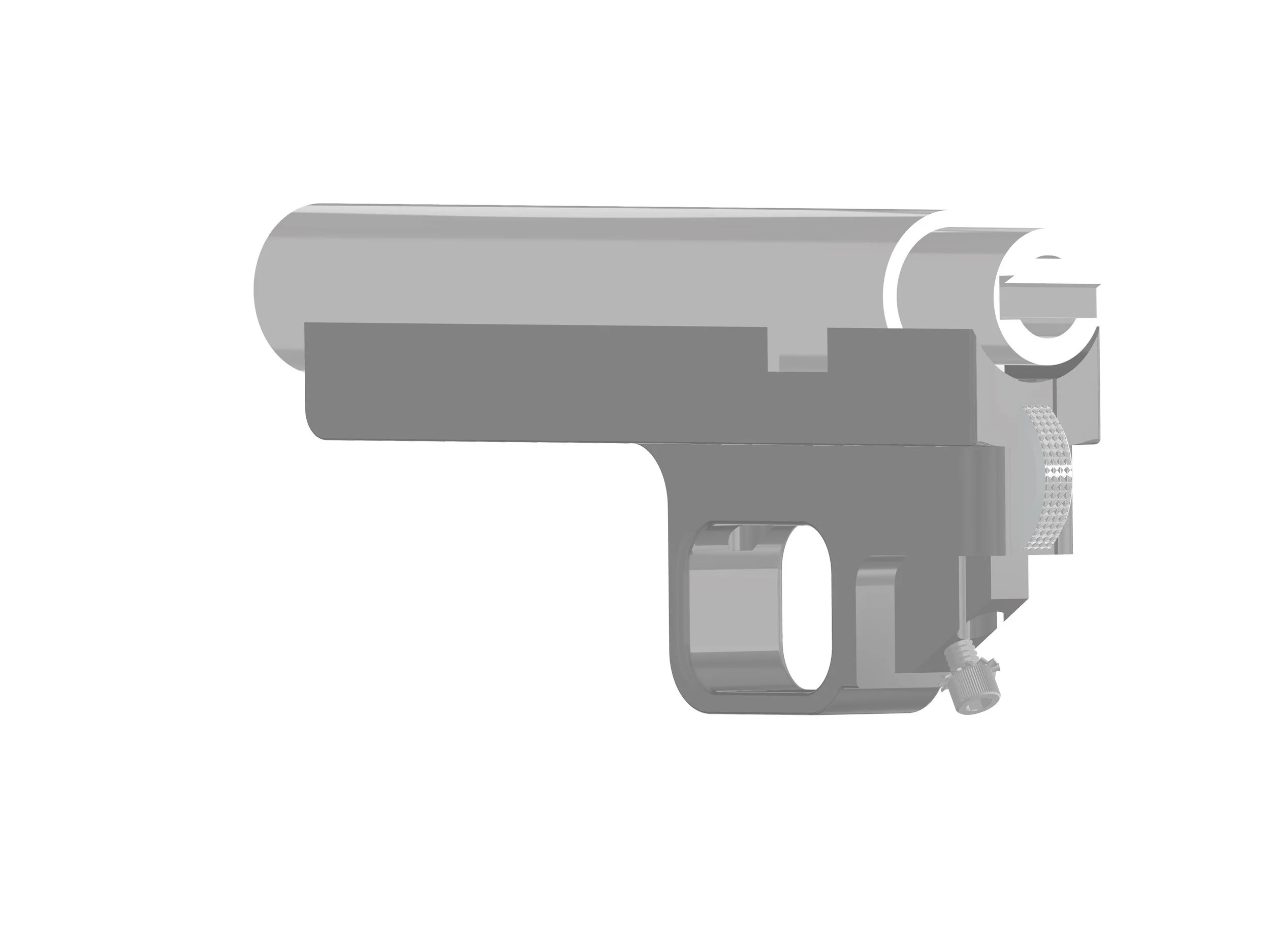

Due to Infrequent supply and overwhelming cost, TSS is bring our own 4-Way adjustable butt plate assembly to the market. Borrowing heavily from the Tubb and McMillan designs, we have created a product improved version with features that allow you to install it at home with ease!
Specifications:
Pachmayer Padded Butt plate
6061-T6 Aluminum Construction
Adjustment Features: Buttplate up/down, Buttplate twist, Buttplate offset left/right, Buttplate in/out
Setup options are ambidextrous friendly for LH or RH Use
75% Excess Material Reduction Skeletonizing for Lightweight
OPTIONAL: Install at Home kit for boring the Length of Pull adjustment cylinder Hole

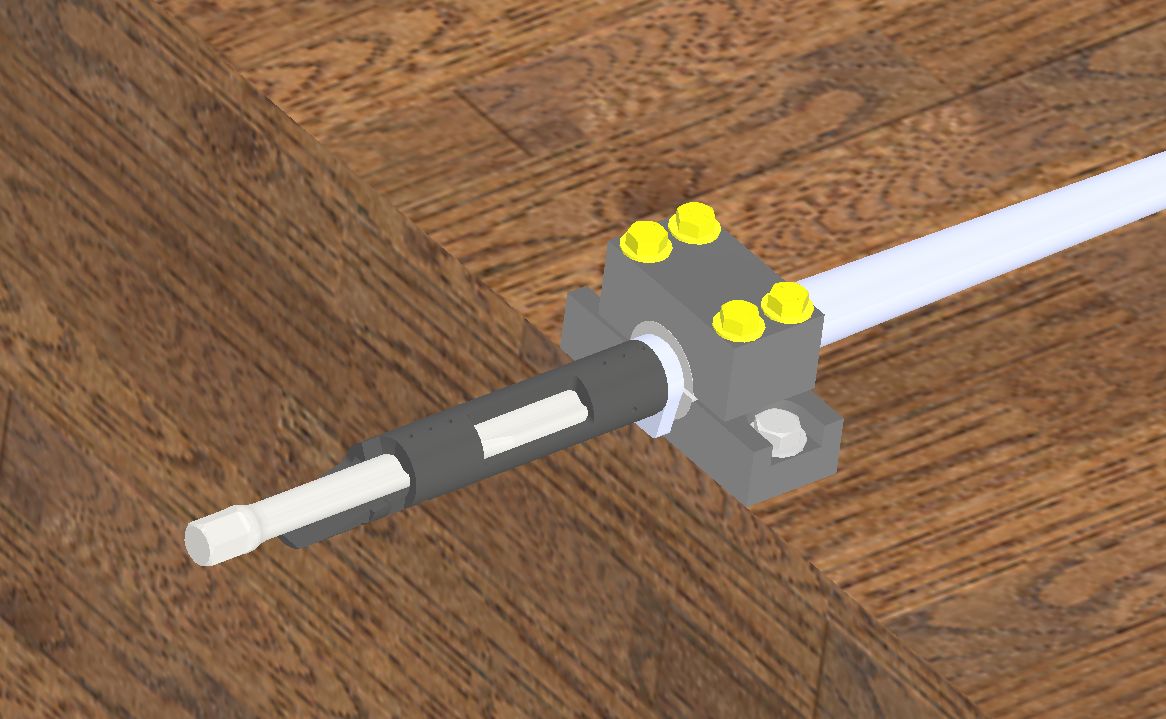

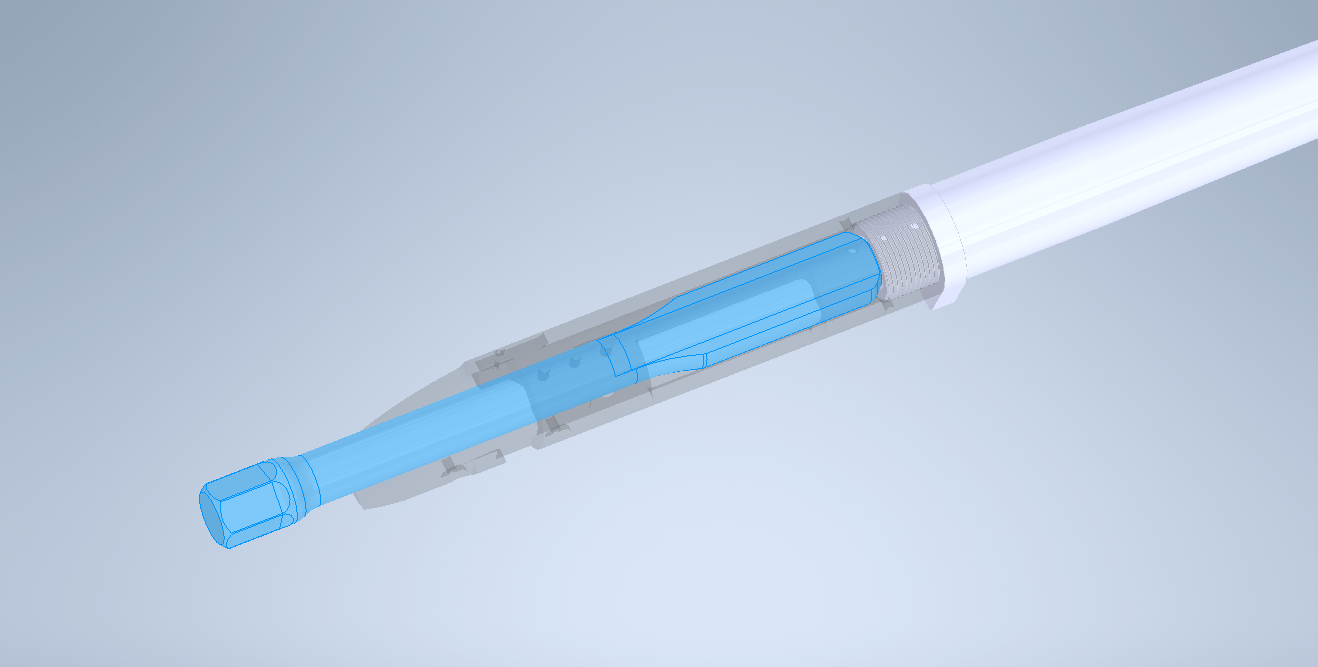

OPTIONAL: “Install At Home Kit” - This kit is exactly what it means! The trouble with installing these buttplate assemblies is that they require a relatively precise hole in the back of the stock for the ~4” of length of pull adjustment. If you oversize or drill this hole crooked by using a hand drill, you can ruin your stock! This kit works in the following manner: 1. Install the Base plate to the stock. 2. Install the Drill Guide block to the base plate. 3. Using the included drill, tape a depth stop to the drill at 4” deep. 4. Carefully insert the drill in the guide block and use a drill to plunge the hole until the tape reached the guide block. 5. Remove the guide block and continue assembling the buttplate assembly.
Free Shipping to the CONUS!
Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Gen 1 & Gen 2 Ruger American Rifles
4140 Pre-Hardened Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Improved Gen 2 Design
The Gen 2 Design: TSS went back to the drawing board looking for continuous improvement of our products and found a way to further refine our material properties and action wrench shape. By retaining a full bolt body diameter through the bolt lug engagement area, we were able to improve our wrench strength by 20%, helping with the most stubborn factory barrels and further eliminating the potential for action twisting.
Please Note: Some Howa actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.

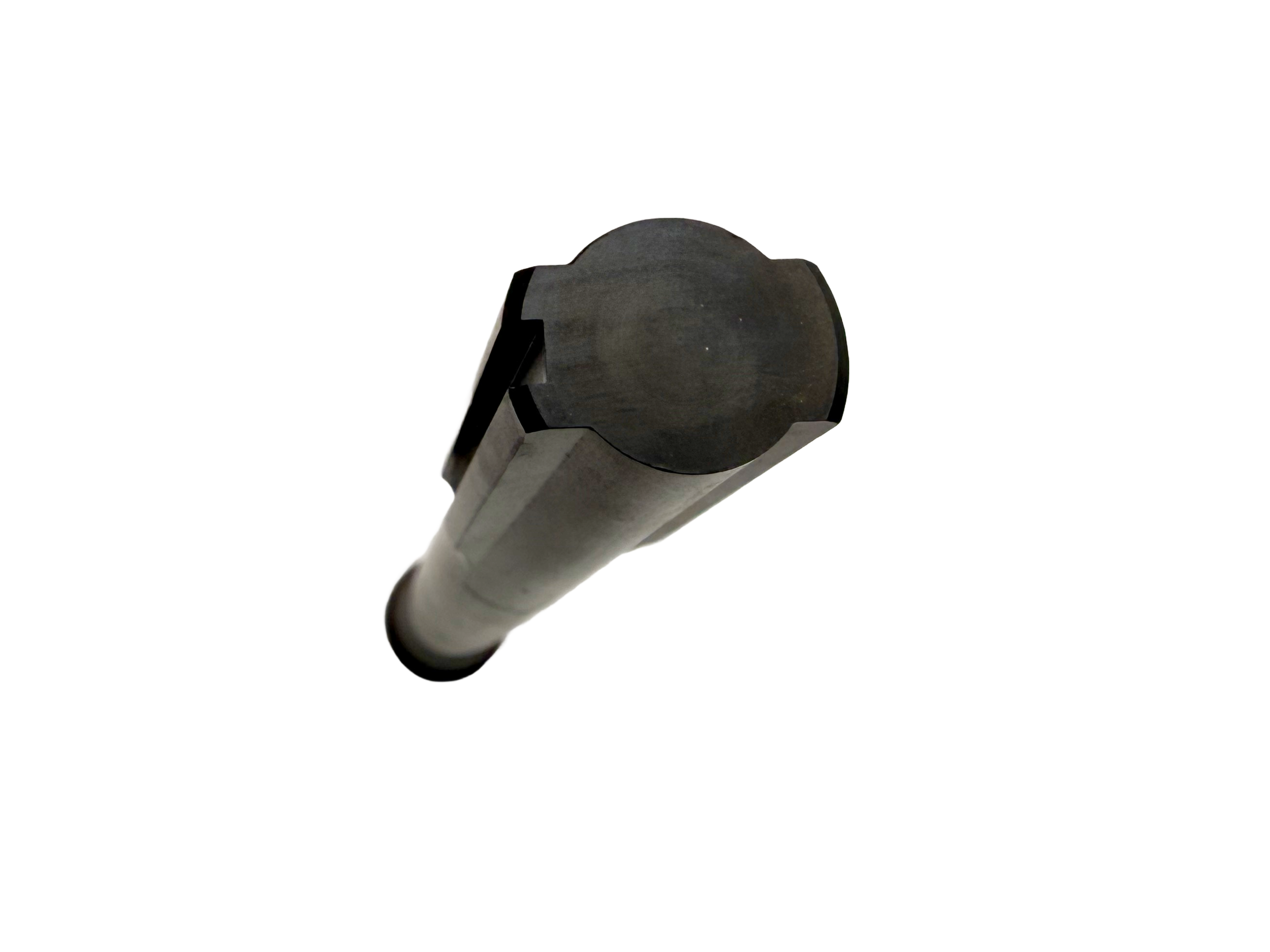

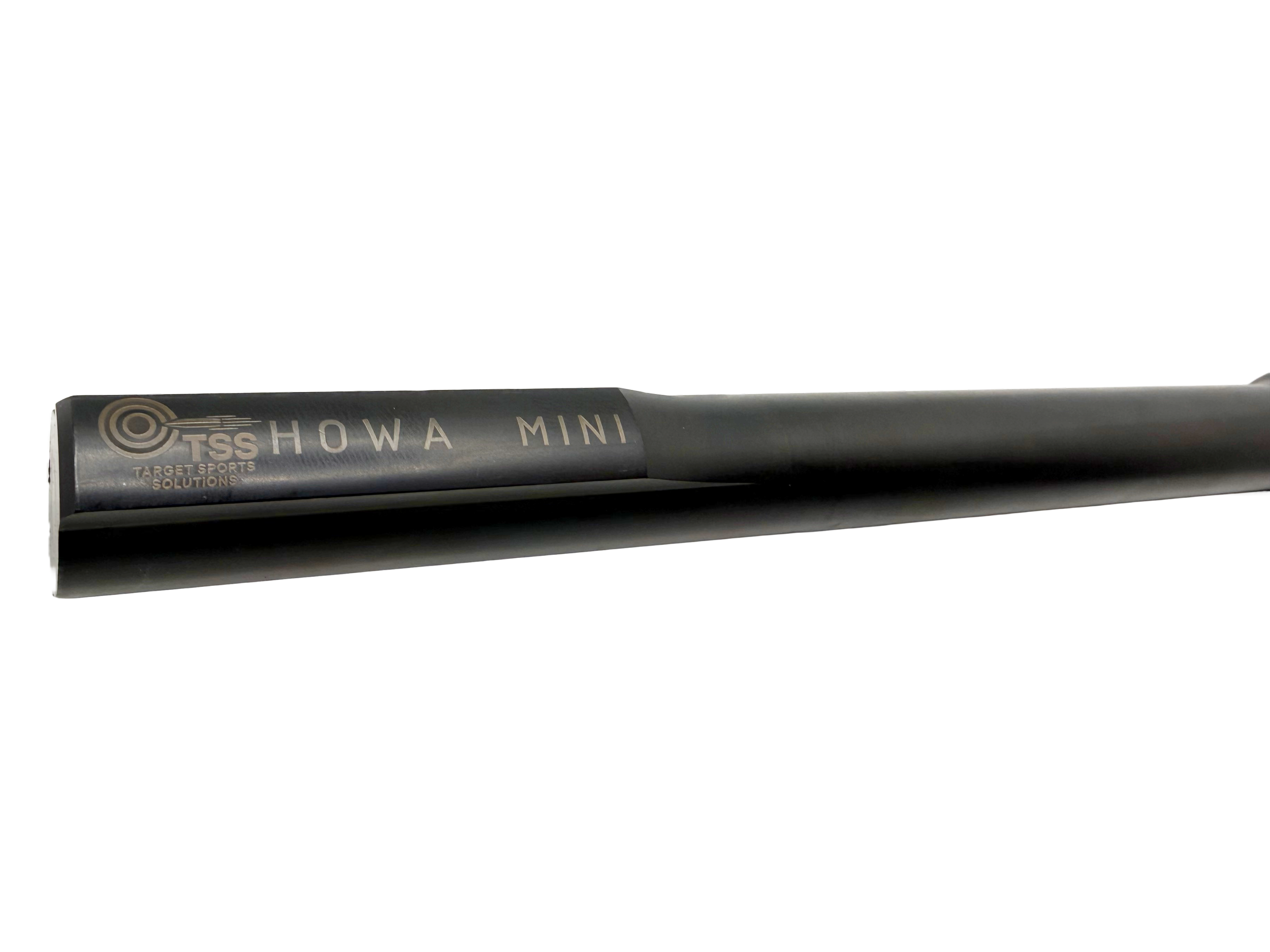

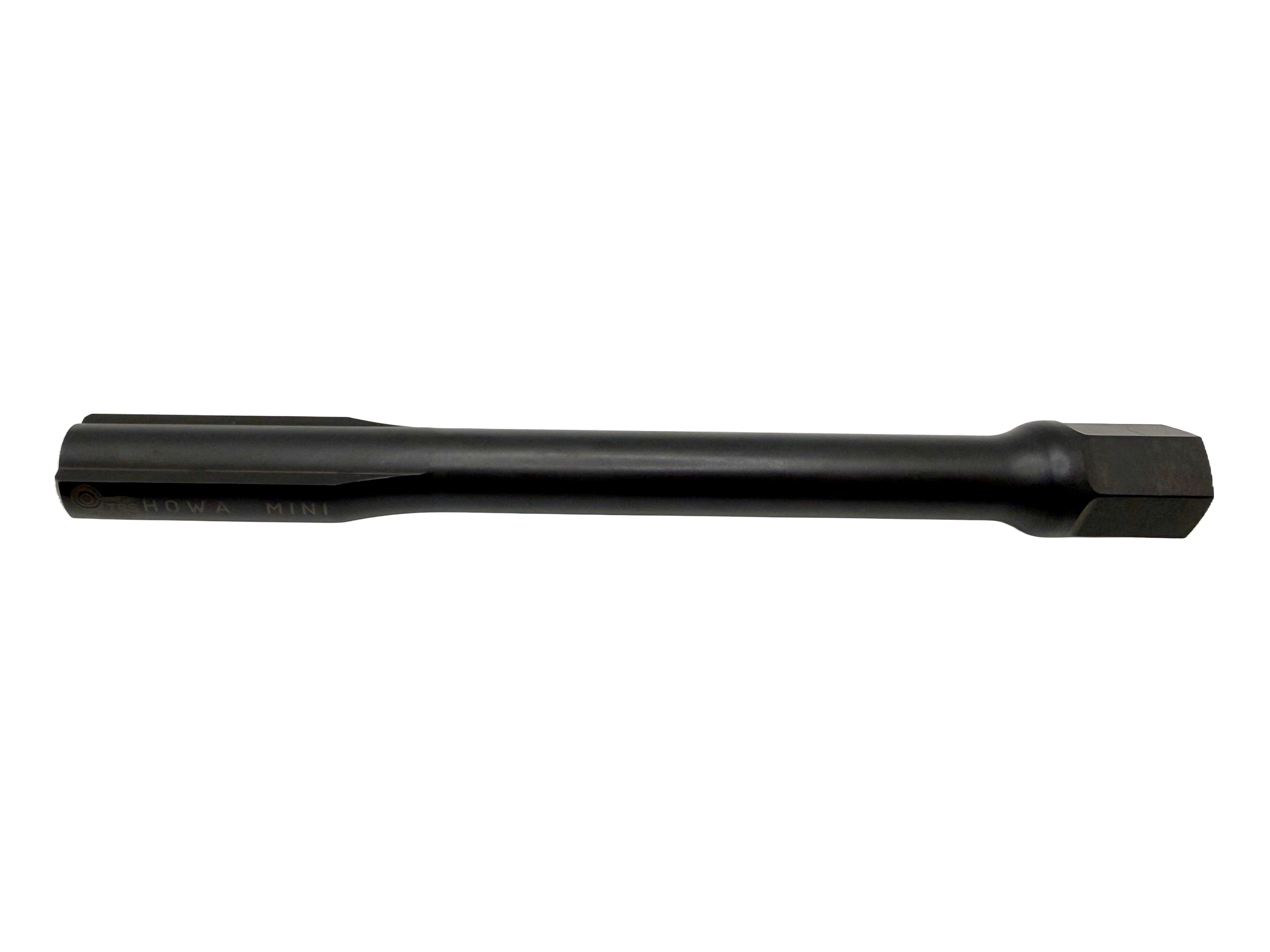

Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Howa 1500 Mini Action Models and Calibers
4140 Pre-Hardened Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Improved Gen 2 Design
The Gen 2 Design: TSS went back to the drawing board looking for continuous improvement of our products and found a way to further refine our material properties and action wrench shape. By retaining a full bolt body diameter through the bolt lug engagement area, we were able to improve our wrench strength by 20%, helping with the most stubborn factory barrels and further eliminating the potential for action twisting.
Please Note: Some Howa actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.

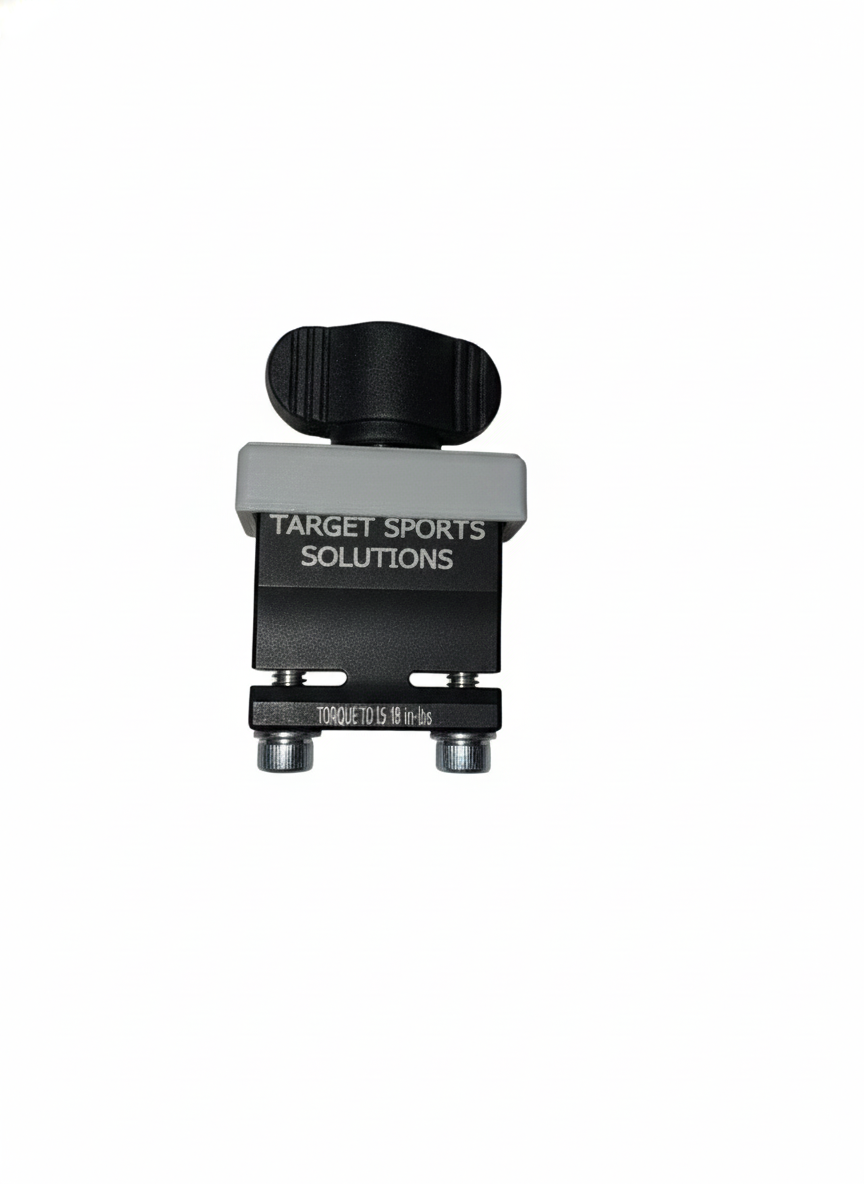

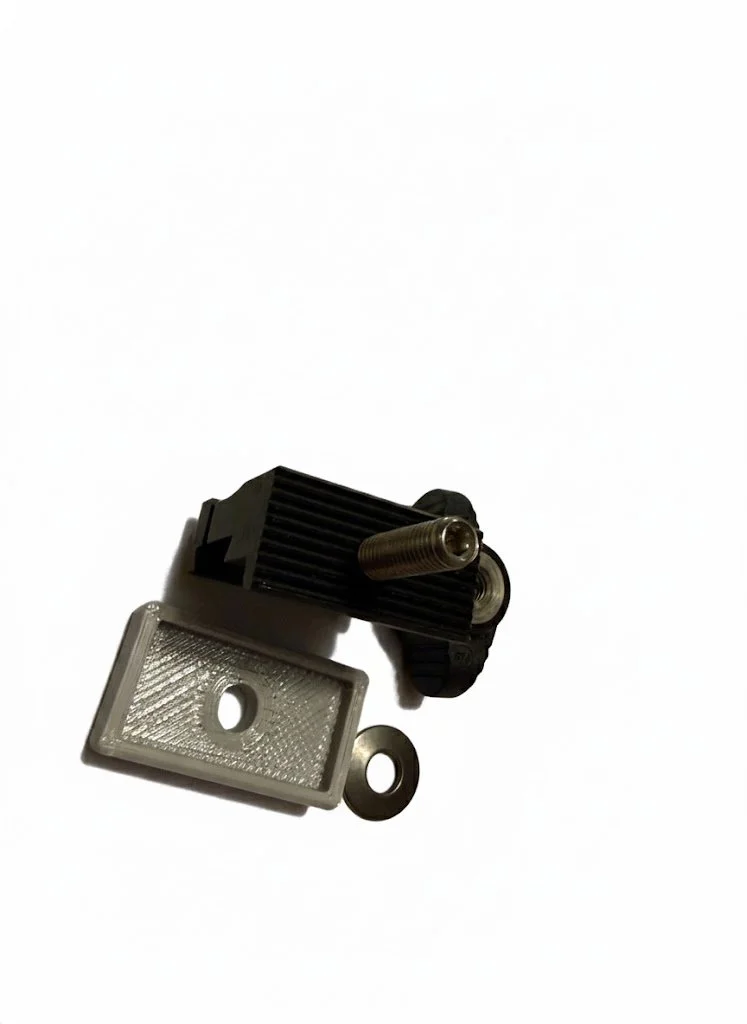

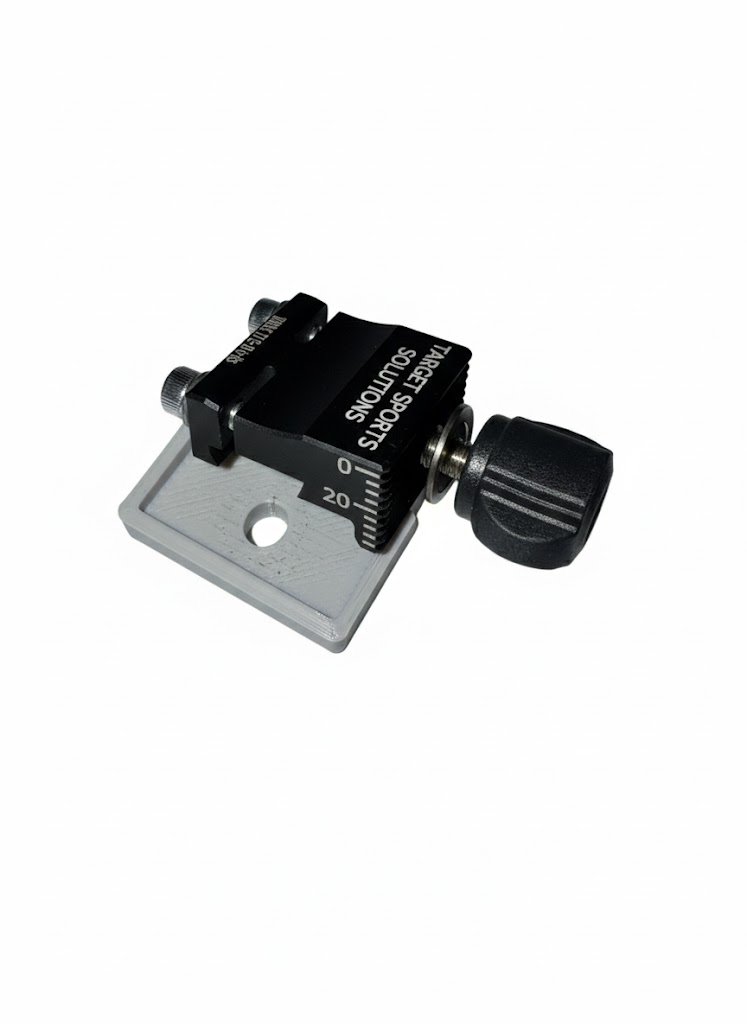

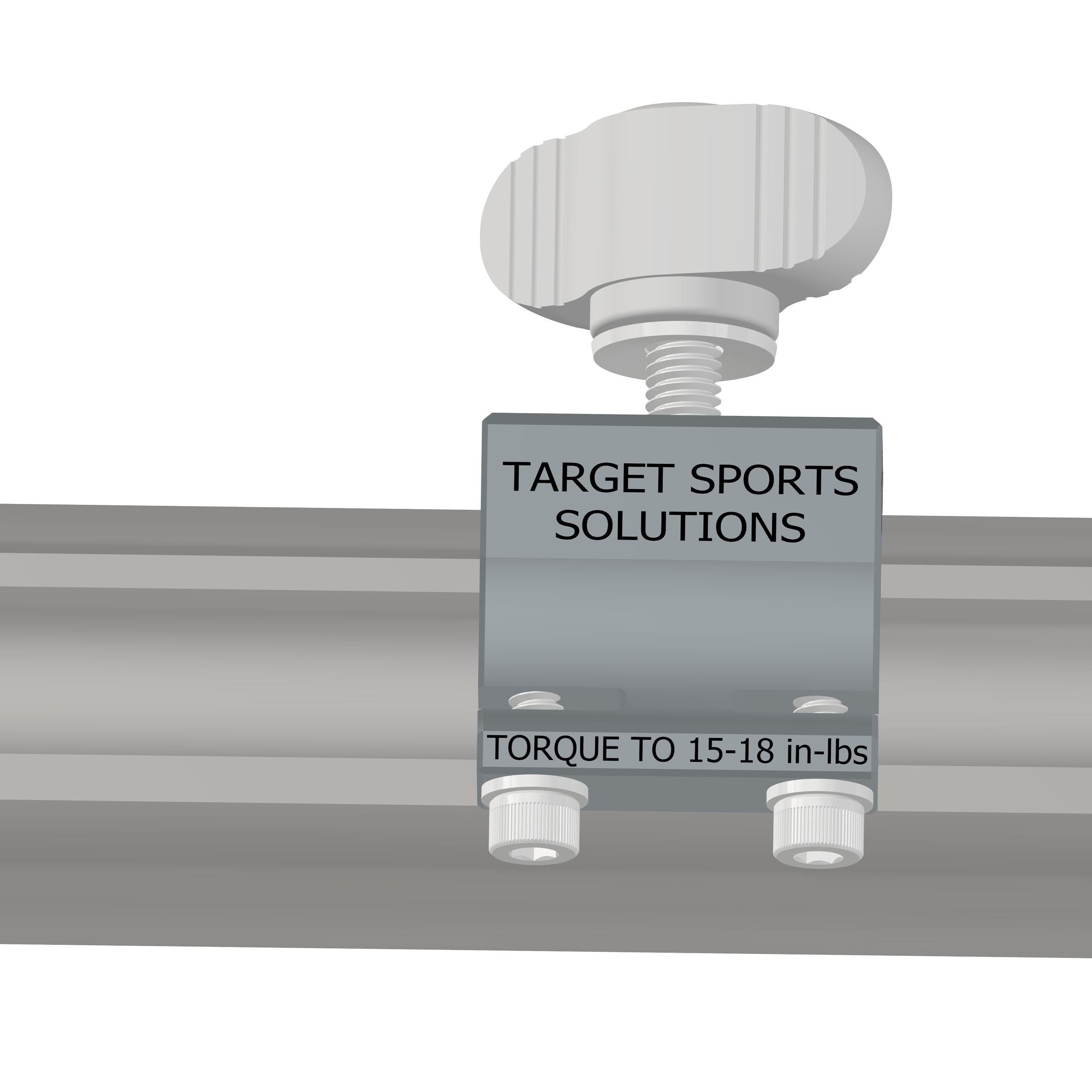

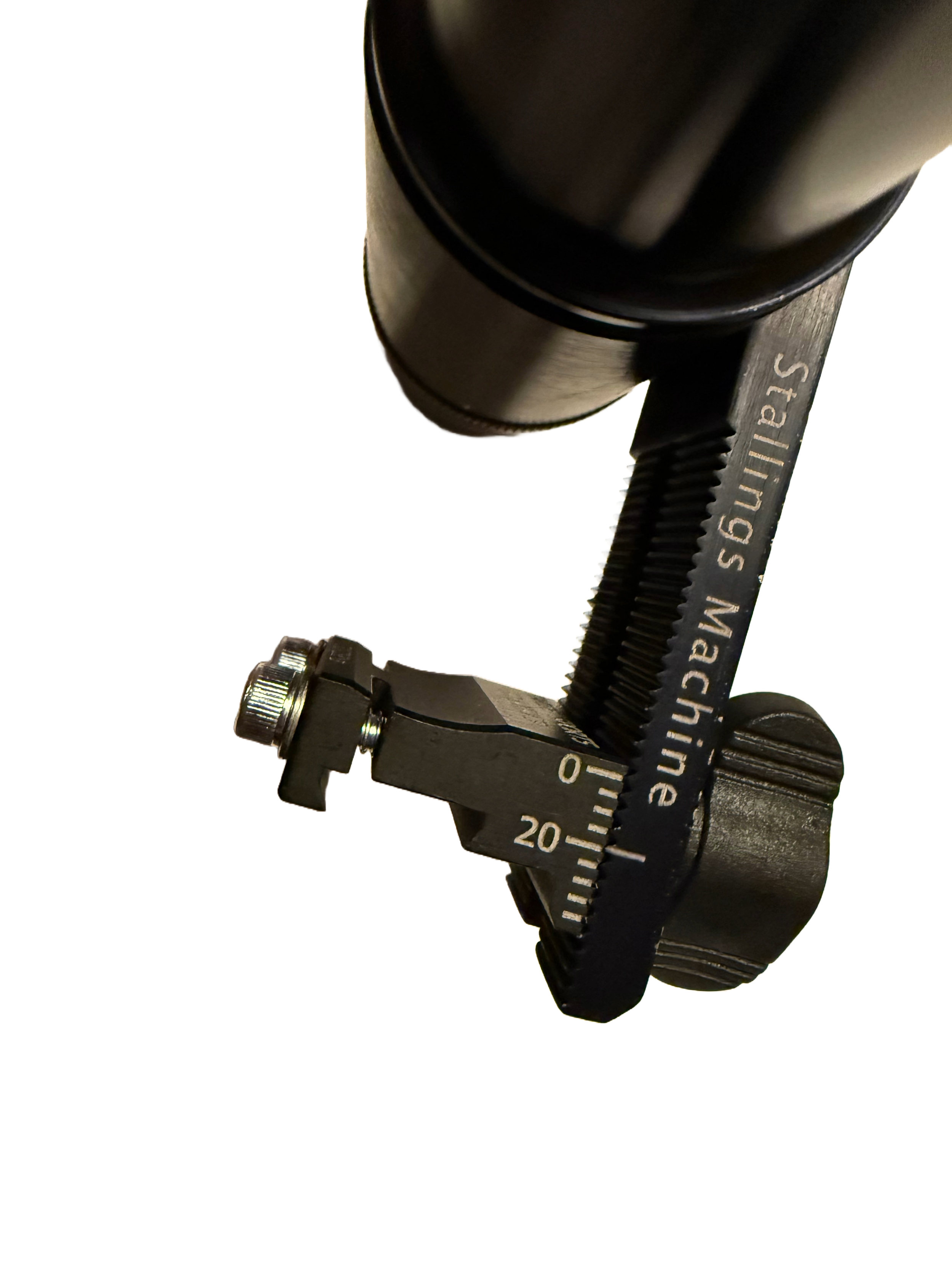

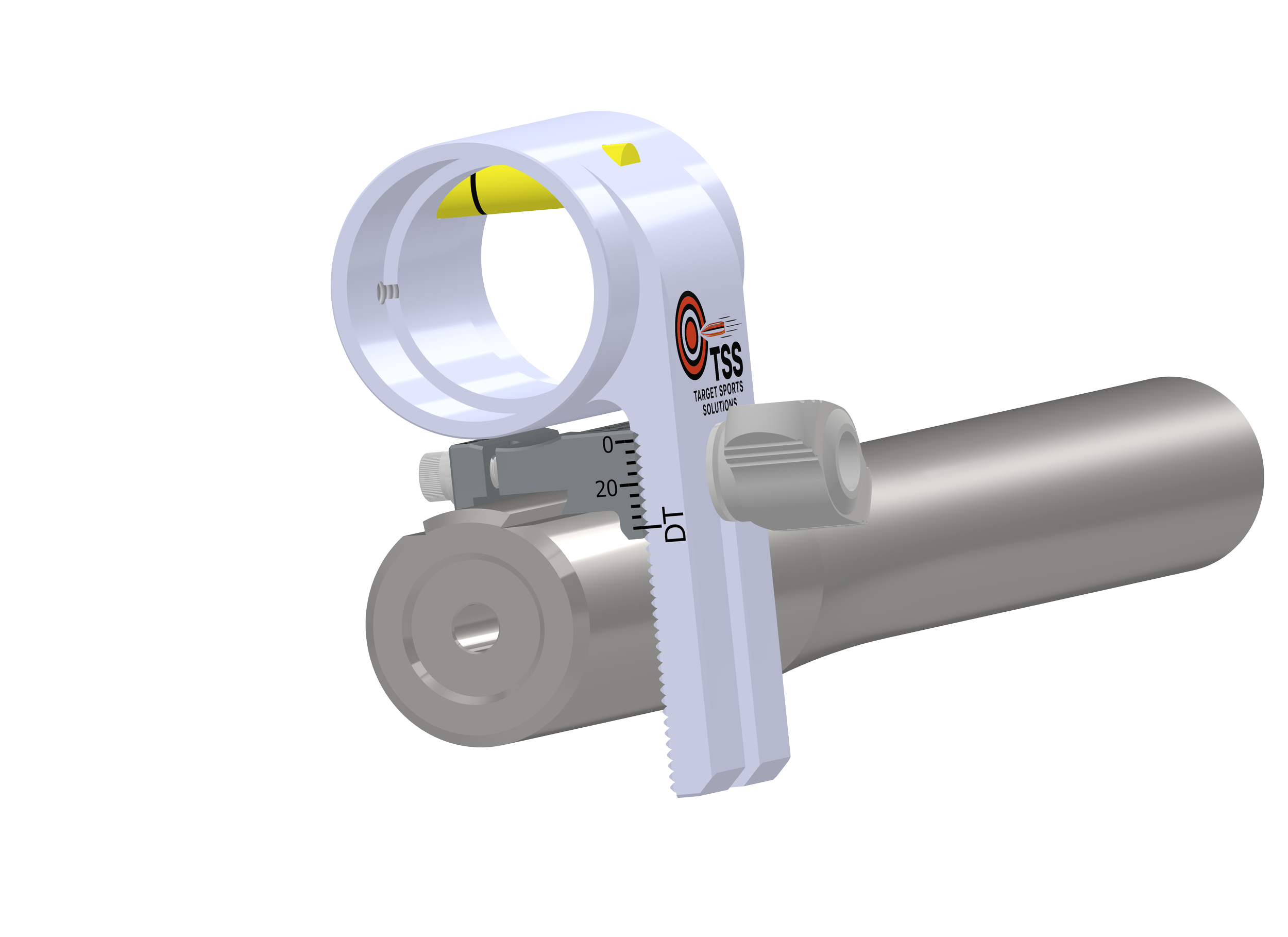

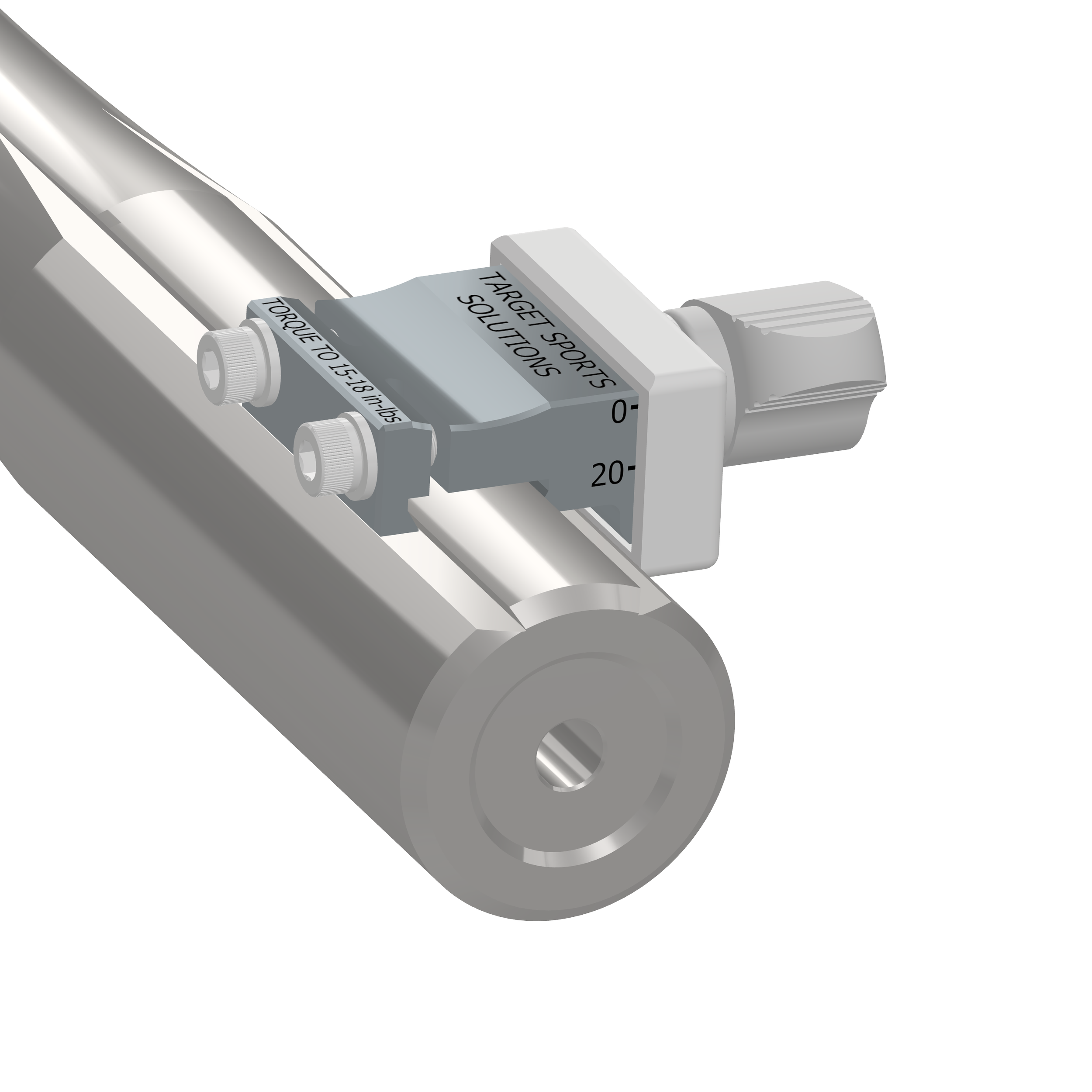

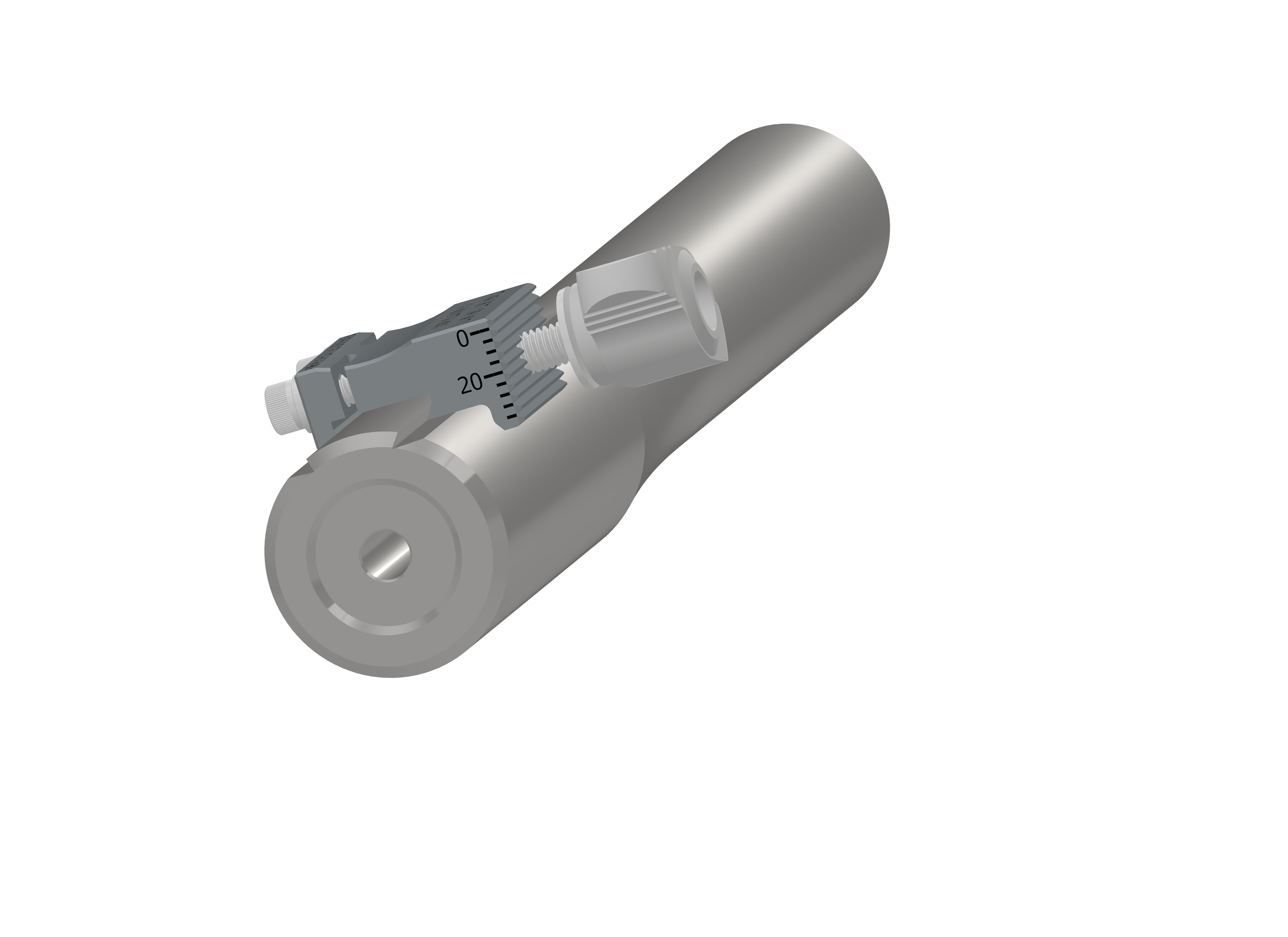

TSS brings you yet another reintroduction of classic shooting gear with our 30mm Front sight base for dovetail barrels, such as Anschutz spec. This base is built to be fully compatible with Right Sight front sights and our SOON TO BE RELEASED improved monolithic tower clone 30mm Front Sight.
Compared to the original Right Sight dovetail base, our improved design provides stronger and more resilient dovetail clamping and maintains the lowest possible front sight height possible when using a Right Sight. Note, this is only compatible with short stems like the original.
Specifications:
7075-T6 Aluminum Construction
Matte Type 3 Hard coat Anodizing for Toughness
Generous chamfers everywhere - minimizes snags and damage that can affect function
Ergonomic & top of the line KIPP Thumb knob bolt for tightening
2X 6-32 Clamping Bolts (Torque to 15-18 IN-LBS) using 7/64 Allen Wrench
Max Barrel Diameter: 1.115” Diameter
High Quality Ladder height location engraving
Mechanical Zero to true centerline
***Please note: The max barrel diameter size of 1.115” is just slightly larger than the largest Anschutz barrels, some Bloop tubes are too large of a diameter, and the tower stem of the right sight will interfere with the tube/barrel. This is just a function of the Right sight tower ladder offset.
Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Savage 110, 10, 11 Model Rifles
4140 Pre-Hardened Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Improved Gen 2 Design
The Gen 2 Design: TSS went back to the drawing board looking for continuous improvement of our products and found a way to further refine our material properties and action wrench shape. By retaining a full bolt body diameter through the bolt lug engagement area, we were able to improve our wrench strength by 20%, helping with the most stubborn factory barrels and further eliminating the potential for action twisting.
Please Note: Some Howa actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.
Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Howa 1500 Actions (NON-Mini) and Calibers
4140 Pre-Hardened Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Improved Gen 2 Design
The Gen 2 Design: TSS went back to the drawing board looking for continuous improvement of our products and found a way to further refine our material properties and action wrench shape. By retaining a full bolt body diameter through the bolt lug engagement area, we were able to improve our wrench strength by 20%, helping with the most stubborn factory barrels and further eliminating the potential for action twisting.
Please Note: Some Howa actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.
Target Sports Solutions is proud to introduce our new lineup of rear entry internal action wrenches!
Specifications:
Compatible with ALL Browning X Bolt Rifles
4140 Pre-Hardened Steel Construction with Black Oxide Finish
3/4" Drive Socket design to properly torque actions to barrels
Improved Gen 2 Design
The Gen 2 Design: TSS went back to the drawing board looking for continuous improvement of our products and found a way to further refine our material properties and action wrench shape. By retaining a full bolt body diameter through the bolt lug engagement area, we were able to improve our wrench strength by 20%, helping with the most stubborn factory barrels and further eliminating the potential for action twisting.
Please Note: Some Howa actions are known to be especially tight and may require a competent gunsmith to cut a stress relieving slice on the factory barrel in front of the receiver. This tool will not harm your action around 175 Ft-lbs and can risk breaking around beyond 225 Ft-lbs. Please use good judgement - using this tool in a way that breaks it exceeds its design intent and can damage your action. We will not accept returns for broken tools and recommend that if a barrel does not come off around 125 Ft-lbs, you have a stress relief cut performed on the barrel.
